MIGインバーター溶接機1kg 5kg P4

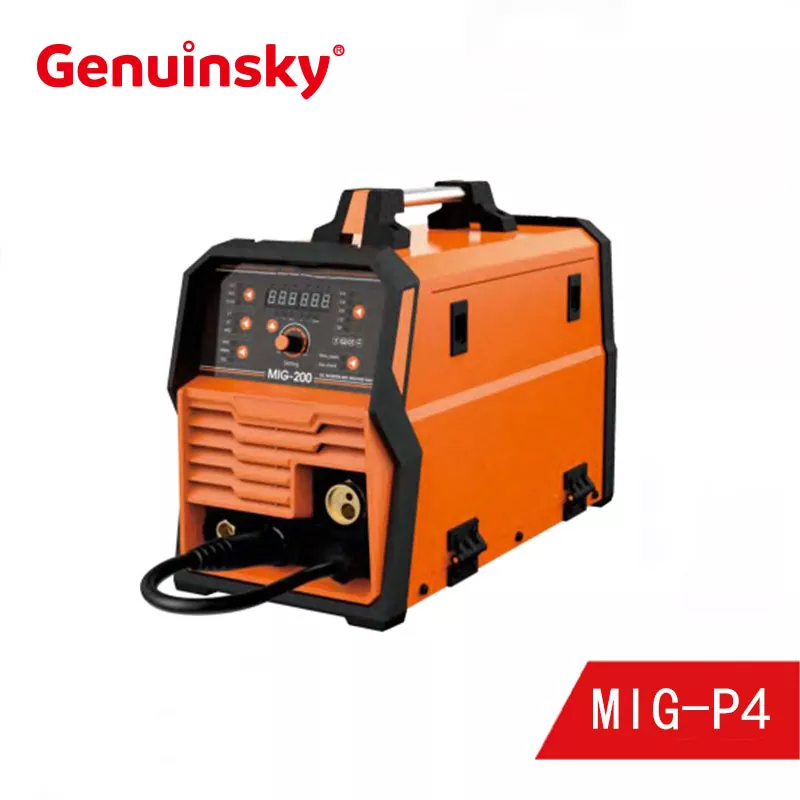

Model:MIG-P4

私たちは、カスタマイズされたサービスを提供している高品質のMIGインバーター溶接機1kg 5kg P4メーカーです。 MIG溶接機は、MIG/MMA/TIGプロセスのシームレスなスイッチングと組み合わせて、超大型ワイヤーリールの連続動作をサポートすることができ、重い製造、精密メンテナンス、および複雑な材料の溶接に適したツールになります。

お問い合わせを送信

製品説明

High Quality MIG Inverter Welding Machine 1kg 5kg P4 Manufacturer. Get a quick quote now! This MIG/MMA/TIG-P4 Inverter MIG Welding Machine,Synergic machine. Adopt A-type LCD. Portable MIG welding machine, convenient to carry. Digital control, only one knob on front panel, synergic adjustment. Arc initiation easily and keep stable status for long time. Low splash and smooth in weld joint. Gas-less machine, which is suitable for flux wire. Fan cooled ensuring better performance and durability. Three functions in one machine, including MIG,MMA and TIG lift.

Technical Data

MODEL	MIG/MMA/TIG- 140 P4	MIG/MMA/TIG- 160 P4	MIG/MMA/TIG- 180 P4	MIG/MMA/TIG- 200 P4
INPUT POWER	220V 50/60HZ	220V 50/60HZ	220V 50/60HZ	220V 50/60HZ
RATED INPUT CAPACITY (KVA)	4.7	5.7	6.7	7.7
RATED INPUT CURRENT(A)	21.5	25.7	30.3	35.1
OPEN CIRCUIT VOLTAGE (V)	60	60	60	60
MIG OUTPUT CURRENT RANGE(A)	35-140	35-160	35-180	35-200
MMA OUTPUT CURRENT RANGE(A)	20-140	20-160	20-180	20-200
TIG OUTPUT CURRENT RANGE (A)	15-140	15-160	15-180	15-200
RATED DUTY CYCLE @25℃	50%	50%	50%	50%
SUITABLE WELDING WIRE(mm)	0.6/0.8/1.0	0.6/0.8/1.0	0.6/0.8/1.0	0.6/0.8/1.0/1.2
SUITABLE ELECTRODE(mm)	1.6~3.2	1.6~3.2	1.6~4.0	1.6~4.0
PROTECTION GRADE	F	F	F	F
INSULATION CLASS	IP21S	IP21S	IP21	IP215
N.W./G.W. (KG)	13.8/14.5	14.2/15	15/15.6	16/16.8
PACKAGE DIMENSION (mm)	540255450	540255450	540255450	540255450
LOADING QTY. (20FT/40FT/40HC	450/900/1100	450/900/1100	450/900/1100	450/900/1100

MIG/MMA/TIG-P4 Inverter MIG Welding Machine Usage scenario, In industrial manufacturing. Ship deck welding.All position welding of pressure pipelines. Aluminum alloy body repair (MIG pulse+argon protection).

For professional users who pursue "high efficiency, high stability, and intelligent operation" (such as shipyards and energy equipment enterprises), this model has significant advantages in productivity improvement and long-term operation and maintenance cost control, and is a model of welding equipment in the Industry 4.0 era.

ホットタグ: MIGインバーター溶接マシン1kg 5kg P4、ポータブル溶接機、Genuinsky Factory、China Supplier
